AMR smart water metering by multi jet water meter and wired Mbus transmit DN15-DN300

Applications:

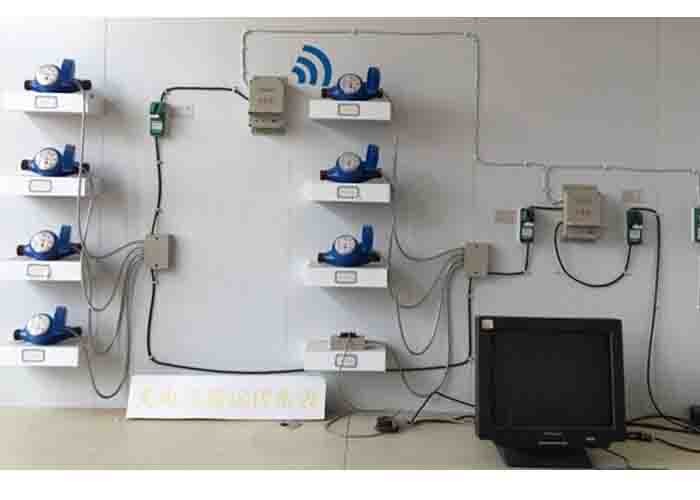

Our advanced residential water meters LXSG-FX. It features electronic sensing of rotor speed, and remote readable by wired Mbus. All these features make the meter a building block for 'smart metering' measurement.

The multi-jet water meter operates on the velocity principle where water enters the measuring chamber through a number of ports and drives a rotor. The velocity of the rotor is proportional to the flow. Available in sizes 15mm to 40mm with nominal flow rates of Qn 1.5m3/h to Qn 10m3/h

Features

FUNCTIONS

1.Totally sealed design, waterproof.

2. Automatically memorize the wheel code position and no need initiation.

3. Avoiding external strong magnetic attack, high performance of anti-interference.

4. Effectively solve the phenomenon of reversing and hammering.

5. Adopting M-BUS communication port, which with long distance communication.

6. No need power supply for daily work.

7. With remote valve control function that can stop water supply remotely.

The basic water meter Features:

• The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
• R value is R80 / 100 / 125 / 160 as requested
• Suitable for both cold and warm water applications
• Replaceable meter inserts available
• Good readability even at extreme operational conditions
• Optionally retrofittable with pulse contactors

Water meter operate condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

TECHNICAL PARAMETERS

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Packing

Shanghai I Fluid Technology Co., Ltd, a technique based company. We focus on the deployment , installation and management system of smart metering and smart grid in all utility sectors, include but not limited to water, heat, gas and electricity.

To adapt to the global environment protection trends, and China government policy, China put the green energy application and EIA at their first place. We do our best contribution to the government energy saving policy.

We put emphasis on central air conditioning system, energy distribution system in separated areas, green energy application in commercial buildings, municipal water / gas / heat supply, sewage discharge monitoring, and many other industrial applications. Adhere to the principle of “ low carbon energy, build future”, we aim to give solution to take the best avail of natural resources, improve energy efficiency, reduce energy consumption. Through more renewable energy, reasonable energy store technique, and minimize energy demands, we help our clients to build an intelligent low carbon energy network. Build the optimized electricity, heat, water and gas supply and demands system, finally to realize the LOW to ZERO energy system.

Over tens of years developing, we design and manufacture a complete set of energy relating products: central air condition with variable ventilation and ventilate at low temperature, flexible central air conditioning, cooling store capacitor, AMR/AMI, metering and level products.
