Magnetic heat flow meter for energy consumption calculator in commercial and industrial building automation

General description

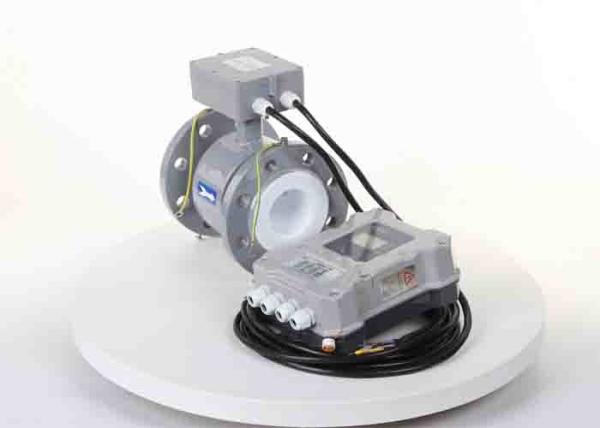

The electromagnetic flow transmitter, with rugged, robust energy calculator that is ideal for commercial and industrial installations with a wide range of communication possibilities. It fulfils the IP67 requirements guarantee that the meter is resistant to dust, humidity and water, ensuring that no matter how hostile the conditions, the meter will continue accurately measuring.

The calculator can be read remotely using a wide variety of communication methods, some of which are in-built such as pulsed output and 4 analogue outputs.

It is a high end thermal energy calculator for industrial applications. Effectively protected against dust and humidity and backlit display. A wide range of built-in functions makes this energy meter a single box solution.

Features

• Stand alone water meter with battery lifetime for more than 4 years. Easy battery change
• Billing grade with class 0.5 accuracy
• Plug and play. No need for programming, no need for wiring
• Compact and rugged design. IP68 submersible
• Large measurement range. Bi-directional
• No moving parts to wear and tear. Maintenance free
• Short straight-pipe run requirement. Suitable for any desired installation location
• Optional GSM/GPRS wireless and turnkey data service.

Technical parameters:
1. Diameter: DN15 - DN1200
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID
