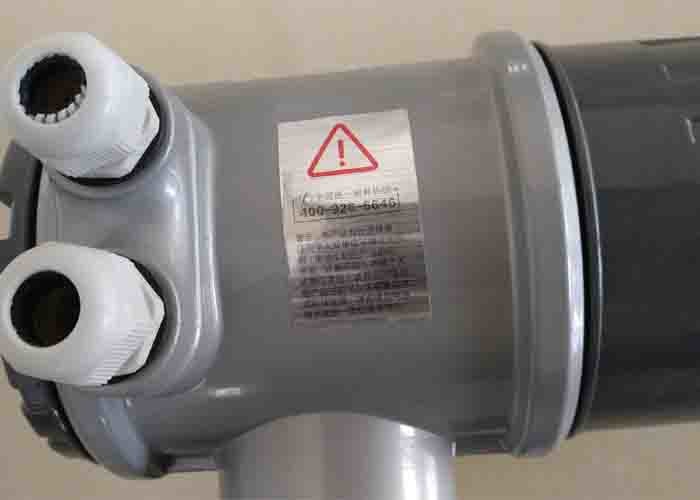

Industrial magnetic flowmeter, flow sensor: IP68, PN16, Accuracy: 0.5%

Diameter range:
The EMF series magnetic flow meter, is available in sizes from 1 to 24 inches (other sizes are available upon request). It has no moving parts to obstruct flow resulting in no pressure loss and the 0.5% accuracy is not affected by temperature, pressure, viscosity, density or flow profile. With no moving parts, practically no maintenance is required. The chloroprene rubber sensor liner is suitable for liquid temperatures from -13 to 176°F and is compatible with most water-based fluids and many chemicals.

Standard features

Technical data:
1. Diameter: DN15 - DN1200
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID

Shanghai I Fluid Technology Co., Ltd, a technique based company. We focus on the deployment , installation and management system of smart metering and smart grid in all utility sectors, include but not limited to water, heat, gas and electricity.

To adapt to the global environment protection trends, and China government policy, China put the green energy application and EIA at their first place. We do our best contribution to the government energy saving policy.

We put emphasis on central air conditioning system, energy distribution system in separated areas, green energy application in commercial buildings, municipal water / gas / heat supply, sewage discharge monitoring, and many other industrial applications. Adhere to the principle of “ low carbon energy, build future”, we aim to give solution to take the best avail of natural resources, improve energy efficiency, reduce energy consumption. Through more renewable energy, reasonable energy store technique, and minimize energy demands, we help our clients to build an intelligent low carbon energy network. Build the optimized electricity, heat, water and gas supply and demands system, finally to realize the LOW to ZERO energy system.

Over tens of years developing, we design and manufacture a complete set of energy relating products: central air condition with variable ventilation and ventilate at low temperature, flexible central air conditioning, cooling store capacitor, AMR/AMI, metering and level products.
