Liquid level pressure transmitter for metallurgy: -0.1 Mpa - 100 Mpa thread connect

Comparison table:

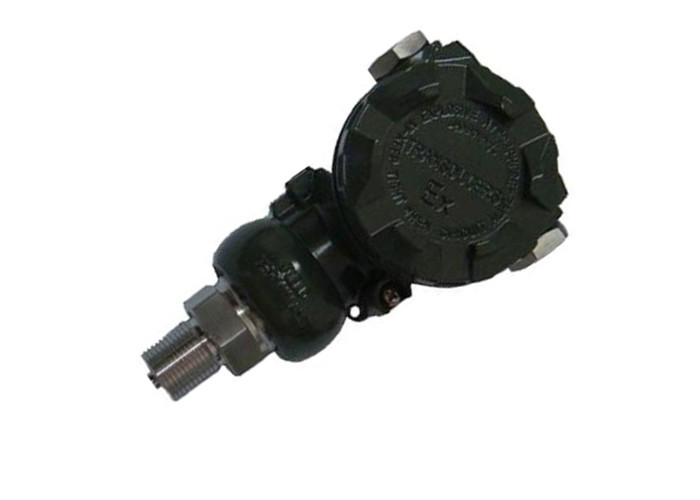

P2 sereis with ceramic pressure resistance transducer

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 85℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Application field

It is widely applied in water plant, oil refinery, sewage treatment plant, construction material, and machinery fields.

Description:

Small and exquisite type pressure/liquid level transmitter is equipped with advanced circuit treatment and temperature compensation technology.

Product features

• With inversion and current-limiting protection;
• Remote control adjustment, vibration resistant, shock resistance;
• Temperature compensation;
• Overload and antijamming capability;

Technical index

• measurement medium: liquid, gas, steam and oil
• measurement range: surface pressure(G)——maximum (0～60)MPa, minimum(0～0.5)KPa;absolute pressure(A)——maximum (0～60)MPa, minimum(0～5)KPa;negative pressure(B)——(-100KPa～60)MPa,minimum(-0.2～0.2)KPa;
• accuracy level: 0.1%F•S.0.25%F•S.0.5%F•S;
• long term stability: less than0.25%F•S/year,less than0.5%F• S/ year;
• overload range: 1～2 times of range
• operating temperature: -40℃～80℃; compensation temperature: -20℃～70℃;
• level of protection: IP65
• power supply voltage: 15-36VDC(nominal voltage, 24VDC)
• output signal : (4～20)mA(2/3 wire).(0-10/20)mA.(0-5)V.(1-5)V.(0-10)V;

Features: pressure transmitter by ceramic pressure resistance transducer

P2-1 sereis with diffused silicone transducer

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 85℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by diffused silicone transducer

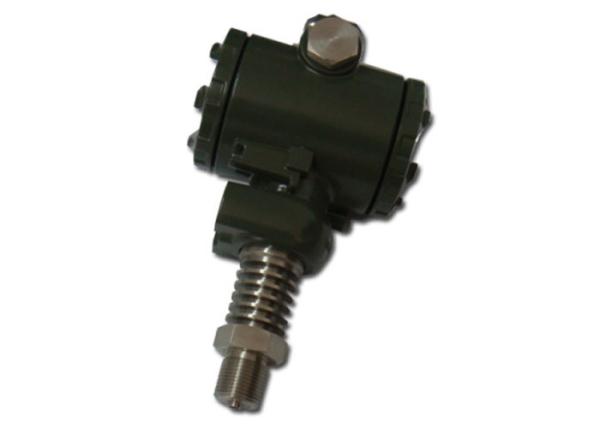

P2-1G sereis with diffused silicone transducer for high temperature

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 400℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by diffused silicone transducer for high temperature media
