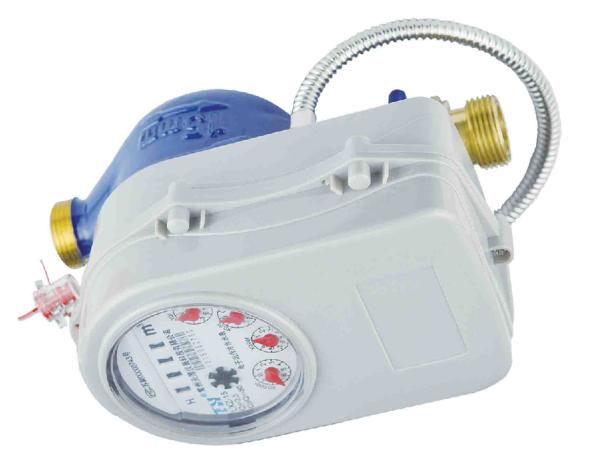

wireless Lora AMR water meter, remote reading multi jet water meter with dry dial, valve control

Description:

The wireless Lora AMR multi jet water meter, has a built in control valve. Material available with PPO, brass, iron body. The electronic direct reading meter with high resolution LCD display, can read and send digital information directly by control server. It's ideal for water utility billing and control purpose. The low start flow measurement multi jet water meter, has wired Mbus / RS485 modulbus communicaiton option.

Introduction:

1) Up transfer:

From concentrator to AMR control center.

(a) GPRS Communication Mode

(b)Telephone Line Communication Mode

(c) RS232 Communication Mode

(d) Ethernet Communication Mode

2) Down transfer

From the collector and water meter.

Wireless network signal has the positive of wide signal propagation, wide coverage area ability, fast construction. One piece of collector can connect with 128 pieces of meter maximally.

The basic water meter Features:

• The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
• R value is R80 / 100 / 125 / 160 as requested
• Suitable for both cold and warm water applications
• Replaceable meter inserts available
• Good readability even at extreme operational conditions
• Optionally retrofittable with pulse contactors

Water meter operate condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

Circuit board

Potable reader

Data sheet

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Packing
