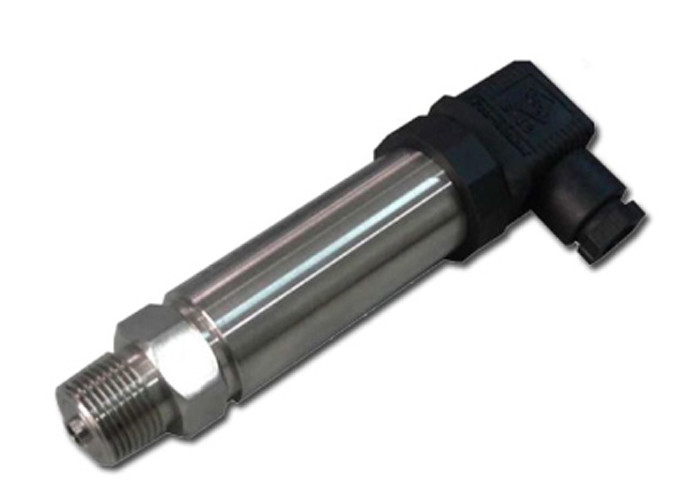

level pressure transmitter for power grid Pressure: 0.2 Mpa - 35 Mpa thread connect

Description:

Our high accuracy pressure transducers have a proven record in high performance commercial and industrial applications. It adopts ceramic pressure resistance, which transfers the pressure from the diaphragm to the strain bridge. The construction provides a very rugged transducer with exceptional accuracy, stability and thermal effects. A unique design ruggedize the transducers by providing secondary fluid containment in the event of a diaphragm rupture.

Applications:

The pressure transmitter in petroleum, chemical processing, metallurgy, pharmacy, power grid, light industry, etc.

Comparison table:

P1 sereis with ceramic pressure resistance transducer

Pressure range: 0.2 Mpa to 35 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 85℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by ceramic pressure resistance transducer

P2-1 sereis with diffused silicone transducer

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 85℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by diffused silicone transducer

P2-1G sereis with diffused silicone transducer for high temperature

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 400℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by diffused silicone transducer for high temperature media
