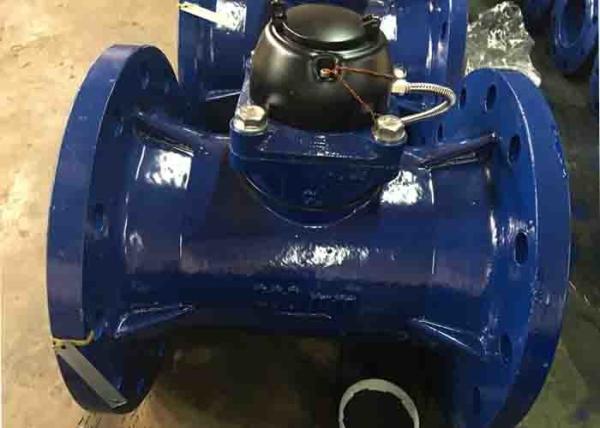

Remote read Irrigation hydrometer, positive displacement water meter, Pipe size: DN50-500, PN16 Mpa

Descriptions:

The irrigation water meter, also called hydrometer, which can be used for a remote reading transmission system as equipped with a built-in sensor.

PRODUCT APPLICATION: To totalize the total volume of cold (hot) water passing through the pipeline.

WORKING CONDITION:

• The max.admissible water pressure: 1.0MPa OR 1.6MPa.
• Water temperature: 0.1℃~50℃ for cold water;
  0.1℃~90℃ for hot water.

FEATURES:

• Removable element structure, it is easy for installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
• Dry-dial, Magnetic drive sensitive action, small pressure loss;
• Vacuum sealed register ensures the dial keeps free from fog and keeps the reading clear in a long term service;
• Selected high quality materials for steady & reliable characteristic;
• It can measure dirty water. The universality of the measuring mechanism is great.
• Negotiability ability is wide. Accuracy in measurement is exact.

MAXIMUM PERMISSIBLE ERROR:

• From transitional flow up to maximum flow both inclusive:±2% for cold water;
  : ±3% for hot water.
• From minimum flow inclusive up to transitional flow: ±5%.

FLOW-ERROR CURVE PRESURE LOSS-ERROR CURVE

DIMENSIONS AND WEIGHTS

MAIN TECHNICAL DATA

BOUNDARY DIMENSION

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Production line

Base water meter
