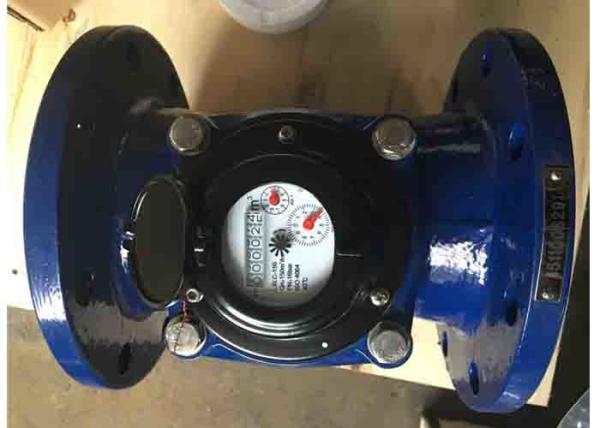

Woltman displacement water meter with dry dial for hot water flow rate and irrigation hydrometer DN200 CI

The ductile iron made, Woltman water meter has a removable mechanism, it's an axial helix by magnetically driven. The meter has wide measure range, less pressure loss, high accuracy at low flow velocity, minimal initial flow. The optional tele reading with pulse output. It's idea for bulk volume measurement of cold water or hot water.

Feature:

• The vertical helix design, easily maintenance.
• Magnetic driven, dry dial, clear reading
• Full flow measuremeng
• Wide measure range, Q3 is up to 250 m3/h
• Initial flow Q3 is down 0.03m3/h
• Technical data conform to international standard ISO 4064.

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Working condition:

• Water temperature:0.1℃～40℃( 0.1℃～90℃ for hot water meter)
• Water pressure: ≤1.0Mpa

Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

(2) in the upper zone from qt inclusive up to and including qs is ±2%

(3) Hot water meter ±3%

Data sheet

Dimension (LXLC)

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Production line

Base water meter
