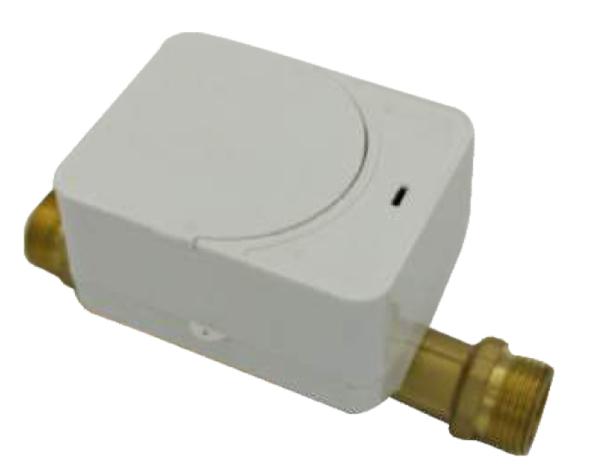

Ultrasonic water meter for potable water flow metering, convection type brass tube R=500

Description:
The conventional type ultrasonic water meter, which is used for measurement of cold water consumption up to 50°C and hot water consumption up to 90°C. The meter can be used in trade, industry and housing.

Product features

● Port size: DN15, DN20 and DN25;
● Dynamic range option: R 160 , 250, 400;
● Starting flow rate as low as 0.002 m3/h;
● Provides sustained accuracy within ±2%;
● Mounting in any installation position in difficult circumstances;
● Integrated mechanical design with protection class of IP68;
● No moving parts eliminate mechanical wear and pressure loss;
● Lithium battery with lifetime over 10 years (measuring cycle: 1s);
● Optional with wired lead or AMR/AMI devices;
● Communication interface: Optical, M-BUS/RS-485, RF.

Functions:

Our conventional water meter and heat meter, are ideal for transient and totalization flow, no moving parts, it has no pressure loss. These are ideally for water utility for water and energy management, measurement and billing.

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Working condition:

• Water temperature:0.1℃～40℃( 0.1℃～90℃ for hot water meter)
• Water pressure: ≤1.0Mpa

Maximum Permissible Error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%
(3) Hot water meter ±3%

Technical specifications

Dimensions

Test station


Dimensions


Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Packing photos
