Multi Jet Water Meter, also as volumetric water meter, brass meter housing for sanitary water meter DN15

Product Description

The wate rmeter housing are available with brass, plastic or stainless steel. This type of water meter, also called volumetric type water meter, which can be used for a remote reading transmission system as equipped with a built-in sensor..

Applications range:
These water meter are for record the total water volumetric flow meter in cubic, liter which pass through the closed pipe line, like water utilities, municipal water supply, etc.

Key Features

• Volumetric rotary piston principle of measurement;
• LXHY-15～20 is no location limitation for installation.
• Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline;
• Register is sealed with a special liquid to keep a clear reading in long term service;
• Mechanism use of high-quality material to ensure a stable characteristic;
• Accurate measurement with conformity to ISO 4064 class C.

Note:

Technical data conform to International Standard ISO 4064.

Application:

Measuring the volume of cold portable water passing through the pipeline.

Data sheet

Flow curve

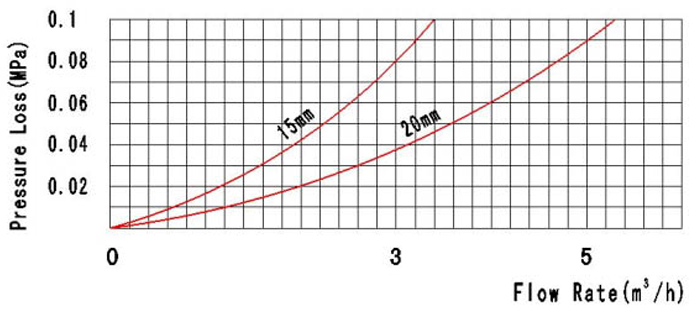

Pressure curve

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Production line

Meter box
