Woltman water meter, dry dial, positive displacement DN50 for industrial water meter

Application

• Measuring the volume of cold (hot) water passing through the pipeline

Feature:

• Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
• Dry-dial, Magnetic drive sensitive action, small pressure loss;
• Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
• Selected high quality materials for steady & reliable characteristic;
• Technical data conform to international standard ISO 4064.

Working condition

• Water temperature: 0.1℃～40℃ ( 0.1℃～90℃ for hot water meter)
• Water pressure: ≤1Mpa (1.6MPa for special requirement)

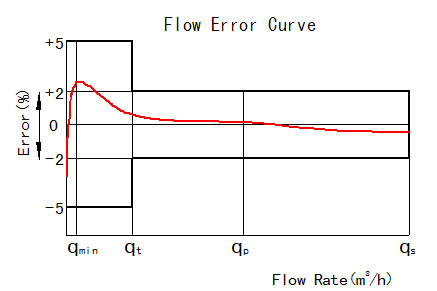

Maximum permissible errors

• in the lower zone from qmin inclusive up to but excluding qt is ±5%
• in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS

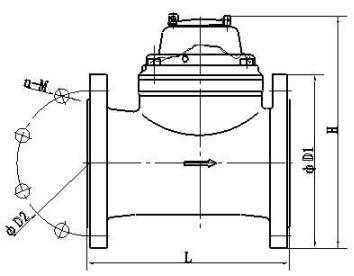

DIMENSIONS

NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

LXLC-50～300 REMOVABLE ELEMENT WOLTMAN WATER METER
