    Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

    Ask Lasest Price
    Brand Name : Iflow
    Model Number : LXXG150FX
    Certification : ISO 4064, GB/T19001
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 2200000 units per year
    Delivery Time : 4-6 weeks
    • Product Details
    • Company Profile

    Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

    Dry Dial Woltman Water Meter DN300 Multijet Water Meter Vacuum Seal for irrigation hydrometer


    Application

    • Measuring the volume of cold (hot) water passing through the pipeline

    Feature:

    • Removable element structure, easy installation and maintenance
    • Dry-dial, Magnetic drive;
    • Large flow capacity, small pressure loss;
    • Resist water hummer and pollution;
    • Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
    • Selected high quality materials for steady and reliable characteristic;
    • Technical data conform to international standard ISO 4064.

    Working condition

    • Water temperature: 0.1℃~40℃ (0.1℃~90℃ for hot water meter)
    • Water pressure: ≤1.0Mpa (1.6MPa on request)

    Maximum permissible errors

    • in the lower zone from qmin inclusive up to but excluding qt is ±5%
    • in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

    MAIN TECHNICAL SPECIFICATIONS

    TypeSize(mm)ClassqsOverloadFlowqpPermanentFlowqtTransitional FlowqminMin.FlowMin. ReadingMax. Reading
    m3/hm3
    LXXG-5050A30154.51.20.0002999,999
    LXXG-6565A50257.52.00.002999,999
    LXXG-8080A8040123.20.002999,999
    LXXG-100100A12060184.80.002999,999
    LXXG-125125A2001003080.002999,999
    LXXG-150150A30015045120.002999,999
    LXXG-200200A50025075200.002999,999
    LXXG-250250A800400120320.029,999,999
    LXXG-300300A1200600180480.029,999,999

    DIMENSIONS

    TypeSize

    L

    Length

    H

    Height

    Connecting flange
    φD1Outside diameterφD2Bolt circle diameter

    ConnectingBolts

    (n-M)

    mm
    LXXG-50502002531651254-M16
    LXXG-65652002681851454-M16
    LXXG-80802252842001608-M16
    LXXG-1001002502952201808-M16
    LXXG-1251252503102502108-M16
    LXXG-1501503003392852408-M20
    LXXG-2002003503823402958-M20(1.0MPa)
    12-M20(1.6MPa)
    LXXG-25025040043339535012-M20(1.0MPa)
    45043840535512-M24(1.6MPa)
    LXXG-30030045048344540012-M20(1.0MPa)
    50048846041012-M24(1.6MPa)

    Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

    NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

    Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
    Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

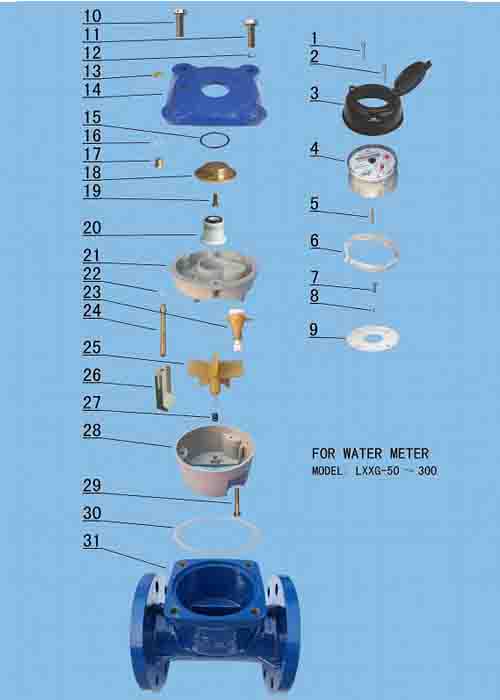

    LXXG-50~300 HORIZONTAL VANE WHEEL, DRY-DIAL COLD WATER METER

    CodeDescriptionMaterialQTY
    1Screw M5×45 For SealingStainless Steel1
    2Screw M5×45Stainless Steel1
    3Cover With LidAssembly1
    4Sealed RegisterAssembly1
    5Fixing pinBrass1
    6Retainer RingABS1
    7ScrewBrass4
    8PinStainless Steel1
    9SupportABS1
    10Bolt For SealingStainless Steel2
    11Bolt M12×35Stainless Steel2
    12GasketStainless Steel4
    13Adjusting NutBrass1
    14Flange PlateCast Iron1
    15O-ringSilicon Rubber1
    16O-ringSilicon Rubber1
    17Bush For AdjustmentBrass1
    18Upper Bearing PlateBrass1
    19ScrewBrass4
    20Lower Central GearComponent1
    21Cover PlateMPPO1
    22O-ring For AdjustmentRubber2
    23Transmission Gear ComponentAssembly1
    24Adjusting LeverBrass1
    25TurbineComponent1
    26Adjusting PlateMPPO1
    27Bush with AgateNylon with Graphite1
    28Measuring ChamberMPPO1
    29Fixing ScrewBrass3
    30O-ringRubber1
    31BodyCast Iron1

    Competitive Advantage:

    • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
    • Strict process control
    • Advanced calibration equipment
    • Engineer team
