Woltman Water Flow Meter Multi Jet Water Meter Reed With Positive Displacement for irrigation hydrometer

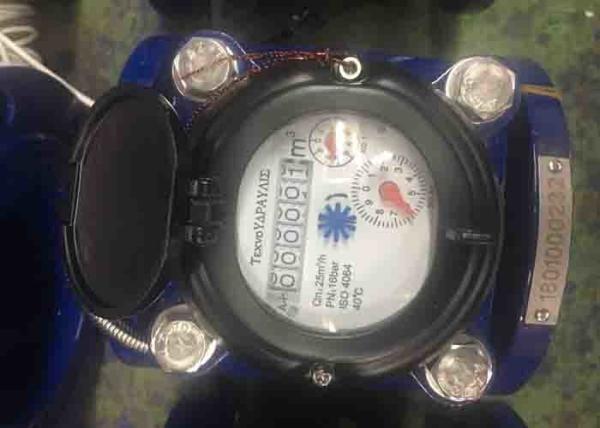

The dry dial woltman water meter can be used for a remote reading transmission system as equipped with a built-in sensor.

Application

--Measuring the volume of cold (hot) water passing through the pipeline

Feature:

--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

--Dry-dial, Magnetic drive sensitive action, small pressure loss;

--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;

--Selected high quality materials for steady & reliable characteristic;

--Technical data conform to international standard ISO 4064.

Working condition

Water temperature: 0.1℃～40℃ ( 0.1℃～90℃ for hot water meter)

Water pressure: ≤1Mpa (1.6MPa for special requirement)

Maximum permissible errors

• in the lower zone from qmin inclusive up to but excluding qt is ±5%
• in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS

DIMENSIONS

NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team

Production line

Base water meter

Shanghai I Fluid Technology Co., Ltd, a technique based company. We focus on the deployment , installation and management system of smart metering and smart grid in all utility sectors, include but not limited to water, heat, gas and electricity.

To adapt to the global environment protection trends, and China government policy, China put the green energy application and EIA at their first place. We do our best contribution to the government energy saving policy.

We put emphasis on central air conditioning system, energy distribution system in separated areas, green energy application in commercial buildings, municipal water / gas / heat supply, sewage discharge monitoring, and many other industrial applications. Adhere to the principle of “ low carbon energy, build future”, we aim to give solution to take the best avail of natural resources, improve energy efficiency, reduce energy consumption. Through more renewable energy, reasonable energy store technique, and minimize energy demands, we help our clients to build an intelligent low carbon energy network. Build the optimized electricity, heat, water and gas supply and demands system, finally to realize the LOW to ZERO energy system.

Over tens of years developing, we design and manufacture a complete set of energy relating products: central air condition with variable ventilation and ventilate at low temperature, flexible central air conditioning, cooling store capacitor, AMR/AMI, metering and level products.
